The smallest Linutop PC. Best for light computing use.
Energy saving : 8W
Small weight and size : 580g (1 lb)
Robust : use 24h/7d
Ready-to-use : Optimized software on flash
For advanced use :
Internet Kiosk, Digital signage, Desktop,
Thin client, VNC, RDP,...
Specifications
| Software |
Linutop OS and applications pre-loaded on flash (700MB)
Try Linutop OS on your PC now! |
| Processor |
AMD Geode LX800 500Mhz (x86)
|
| RAM |
512 MB expandable up to 1GB
|
| Storage |
1 GB Flash Memory (Internal)
|
|
| Network |
10/100baseT Ethernet (RJ-45)
|
| PXE Boot |
Thin client use - LTSP
|
| Video |
VGA output (SUB-D15)
Resolution 1920x1440 max
2D Graphic Acceleration
|
| Audio |
1 In & 2 Out 3mm + Speaker
|
| Extensions |
4x USB 2.0 ports
|
| Internal |
1 IDE / 1 bay 2,5''
|
| Size |
14 x 14 x 3.5 cm (5.5x5.5x1.38 in)
|
| Weight |
580 gr (1 lb)
|
| Power |
12V 3,3A
AC adapter 110-240V~ 50/60Hz
|
| Consumption |
< 8W
|
| Anti-theft |
Kensington Security Slot
|
| Miscs |
Strong closed metal case
Monitor mounting bracket (in option)
|
| Warranty |
1 year (expandable up to 3 years)
|
Read more:
 Data Sheet
Quick User Guide
|

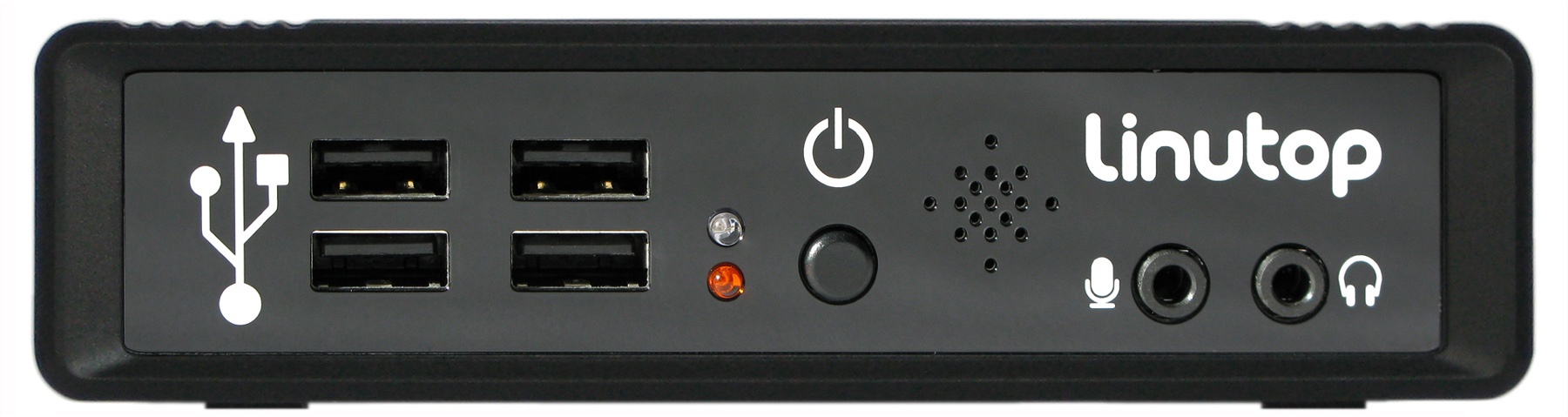

Front

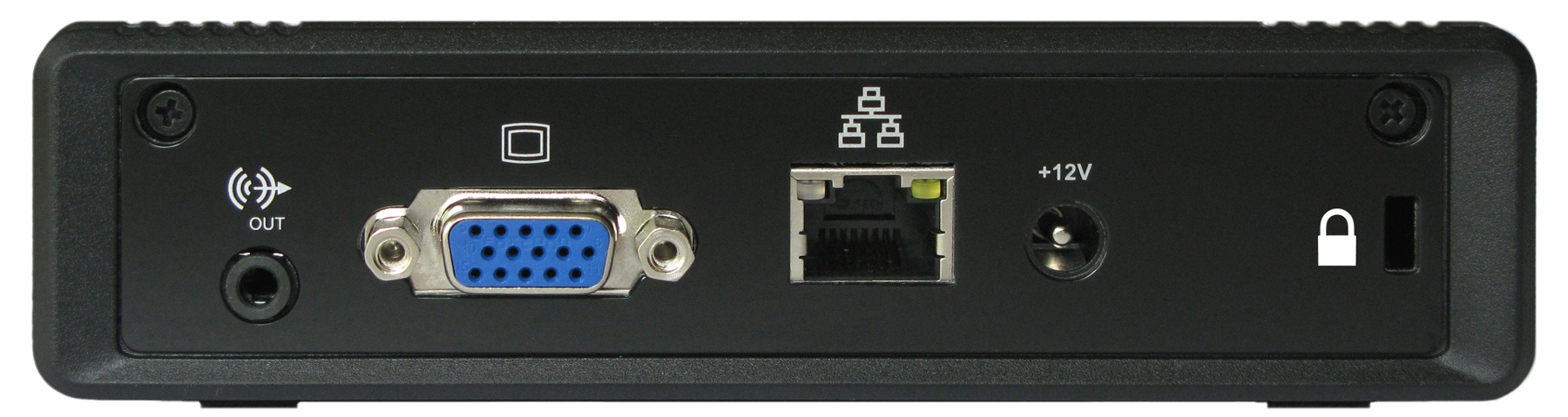

Back
Processing power PIII - 800 MHz
Linutop placed on the back of a flat panel,
with the monitor mounting bracket accessory.
Linutop 2 is replaced by Linutop XS
|
