Linutop 5

Linutop 5 is replaced by Linutop 6
The most expandable Linutop PC.
Best for heavier computing uses :
Secured Kiosk, Desktop, Thin client VNC, RDP, ... or Digital signage.


Software Linutop OS and applications pre-loaded on flash (600MB)
Try Linutop OS on your PC now!
Processor ATOM 1.6 GHz (x86)Fanless
Size 15.2x11x3.5 cm (6 x 3.1 x 1.4in)
Storage 4 GB Flash Memory (Internal)
Network Giga Lan Ethernet (RJ-45) Realtek RTL8111DL
PXE Boot Thin client use
Weight 602g (1.3 lb)
Power < 14W / 12V
AC adapter 110-240V~ 50/60Hz
Audio 1 in & 2 out 3mm
Video VGA + DVI GMA950 output
Resolution 2048x1536 max
3D Graphic Acceleration
Extension 4x USB 2.0 ports
Internal COM Port RS232
Internal 1 Sata, 1 PCIe
Anti-theft slot
Miscs Internal clock backup
Power on button.
Strong Case.
Warranty 1 year (extensible to 3 years)

Read more:
pdf Data Sheet
pdf Quick User Guide

Back Small Computer
Powerful & Lightweight: 602 gr (1.3lb)
Low energy consumption: 14W
Processing power ATOM - 1.6 GHz

Small Computer

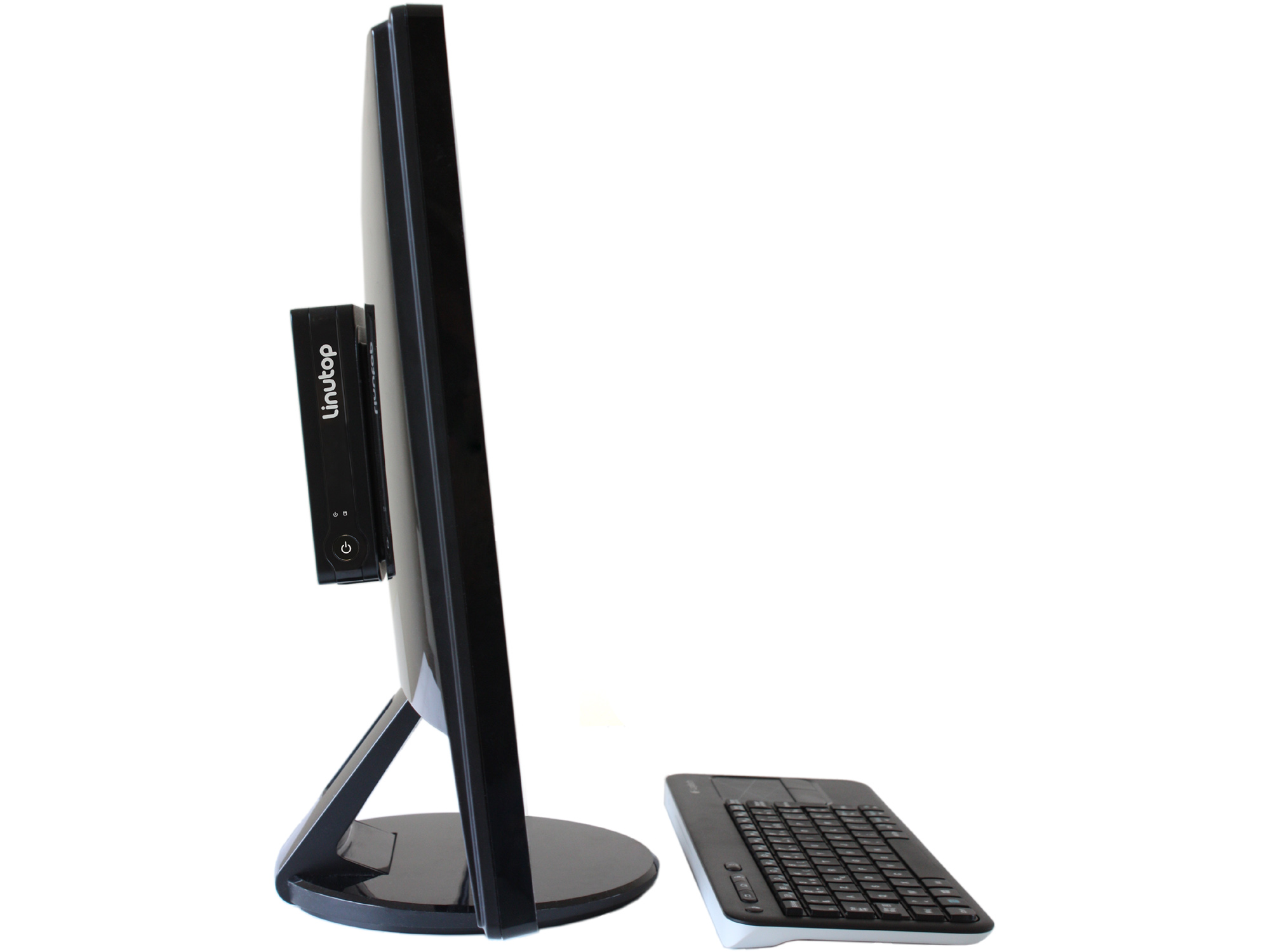

Linutop placed on the back of a flat panel, with the monitor mounting bracket accessory.

Linutop 5 is replaced by Linutop 6
