Linutop 4

Linutop 4 is replaced by Linutop 5

The most efficient Linutop Pc.
Energy saving : 14W
Small weight and size : 936g (1 lb)
Robust : use 24h/7d
Ready-to-use : Optimized software on flash

For advanced use :
Internet Kiosk, Digital signage, Desktop,
Thin client, VNC, RDP,...


Software Linutop OS and applications pre-loaded on flash (700MB)
Try Linutop OS on your PC now!
Processor Intel ATOM N270 1.6 GHz Fanless (x86)
RAM 1GB expandable up to 2GB DDR2
Storage 2 GB Flash Memory (Internal)
Network Giga Lan Ethernet (RJ-45)
PXE Boot Thin client use
Video VGA + DVI Output - GMA950
Resolution 1920x1440 max
3D Graphic Acceleration
Audio 1 In & 2 Out 3mm
Extensions 5x USB 2.0 ports
internal 2 Sata / 1 Bay 2,5'', 1 PCIe, 2 COM ports
Size 18.2 x 20.1 x 3.6 cm (7.1x7.9x1.4 in)
Weight 936g (2 lb)
Power 12V – 3,3A
AC adapter 110-240V~ 50/60Hz
Consumption < 14W
Miscs Strong metal case
Monitor mounting bracket (in option)
Warranty 1 year (expandable up to 3 years)

Read more:
Data Sheet
Quick User Guide


Processing power ATOM - 1.6 GHz

Small Computer

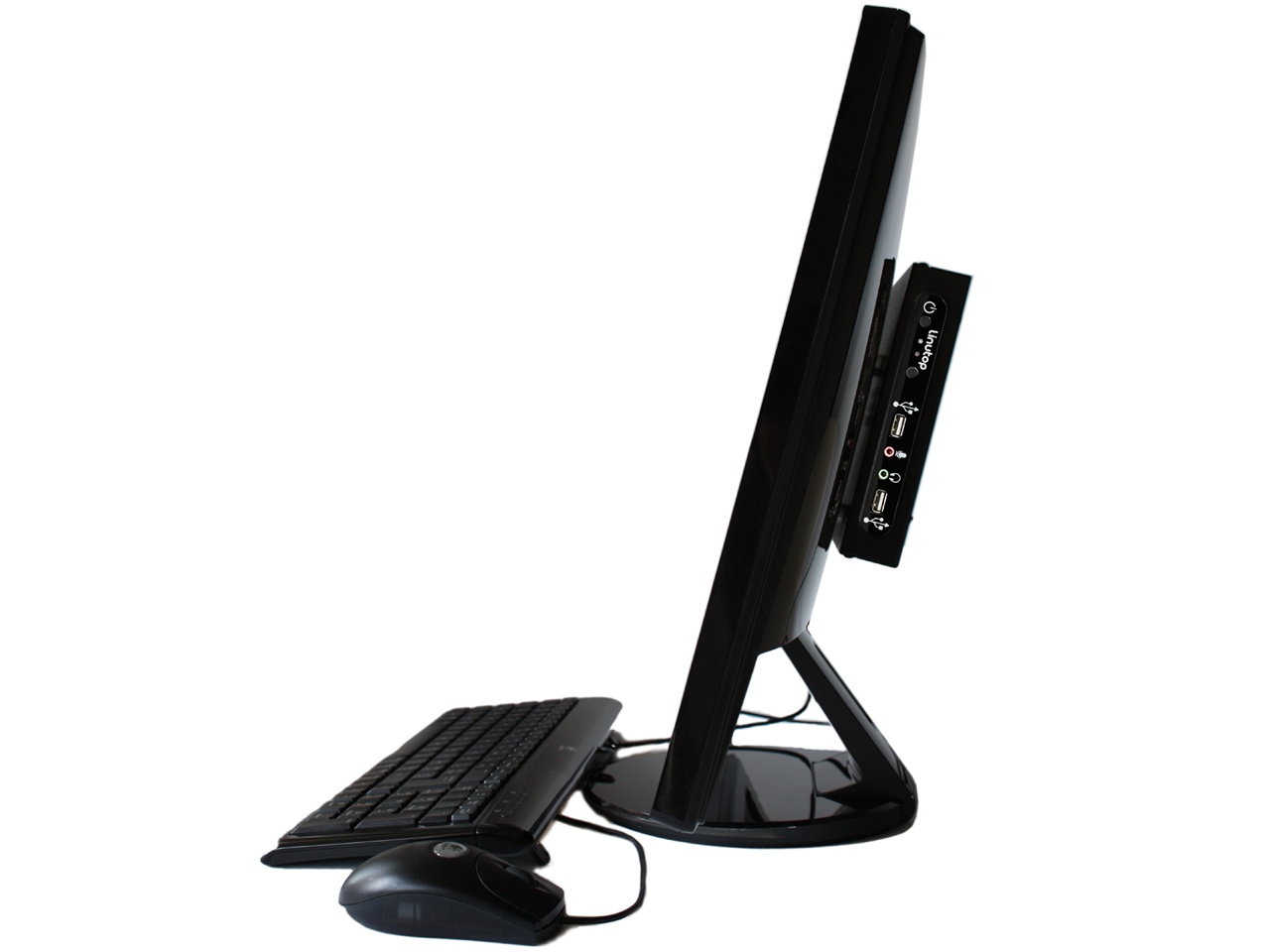

Linutop placed on the back of a flat panel,
with the monitor mounting bracket accessory.

Linutop 4 is replaced by Linutop 5
